2003 FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB

2003 FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB

$12,000 (USD)

Location:Imlay City, MI

orCall 1-231-526-7135 fax

Description

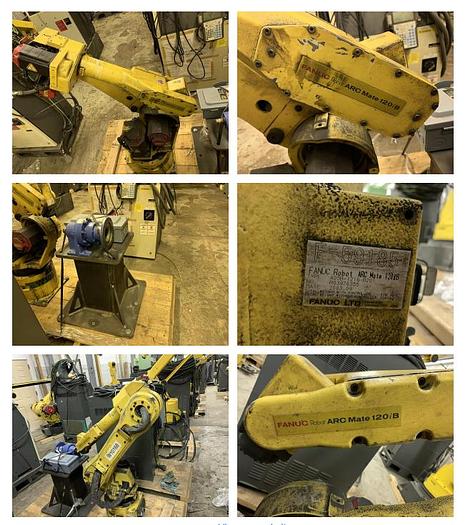

1-USED FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

SERIAL NUMBER F59185

DATE OF MFG. 09/2003

STK#104014

=======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

HOURS SHOWN ON METER 5,947.1

Robot Specifications:

Axes: 6

Payload: 20.00kg

H-Reach: 1667.00mm

Repeatability: ±0.0800mm

Robot Mass: 220.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)

Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°

For high-speed welding and cutting processes, the FANUC ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The FANUC 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction.

In addition to high-speed cutting and welding, the ARC Mate 120iB is capable of performing a variety of welding applications, including MIG welding, TIG welding, Plasma welding and Plasma cutting.

The 120iB is the best in its class for reach versus stroke ratio and fastest motion speeds. The exceptionally fast wrist axes reduce air cut times, and the ARC Mate has an extremely large work envelopes and complex tooling.

Robot Applications:

MIG Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

MAG Welding Robots

Welding Automation Robots

Arc Welding Robots

EQUIPPED WITH:

FANUC RJ3iB CONTROLLER

CABLES

TEACH PENDANT

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.

Specifications

ManufacturerFANUC
ModelARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB
Year2003
ConditionUsed
Stock Number104014
