FANUC M900iA/350 6 AXIS ROBOT WITH R30iA CONTROLLER AND SERVO SPOT WELD GUN

1-USED FANUC M900iA/350 6 AXIS CNC ROBOT WITH R30iA CONTROLLER

EQUIPPED WITH SERVO DRIVEN SPOT WELD GUN

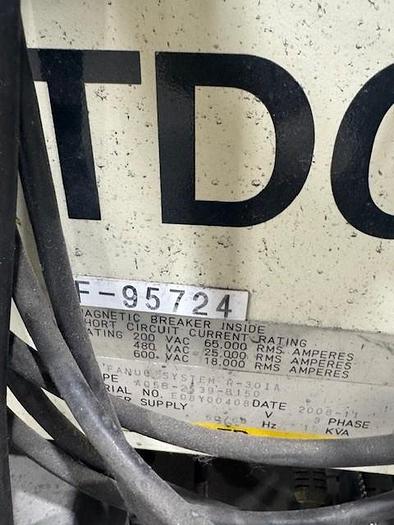

MACHINE SERIAL NUMBER F95724

DATE OF MFG. 11/2008

STK#104149

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Specifications:

Axes: 6

Payload: 350kg

V-Reach 2650

H-Reach: na

Repeatability: ±0.3mm

Robot Mass: 1720kg

Structure: Articulated

Robot Motion Speed:

J1 100 °/s (1.75 rad/s)

J2 95 °/s (1.66 rad/s)

J3 95 °/s (1.66 rad/s)

J4 105 °/s (1.83 rad/s)

J5 105 °/s (1.83 rad/s)

J6 170 °/s (2.97 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±150°

J3 ±223°

J4 ±720°

J5 ±250°

J6 ±720°

MECHANICAL WEIGHT 1720 KG

MOUNTING METHOD FLOOR, CEILING, ANGLE

EQUIPPED WITH:

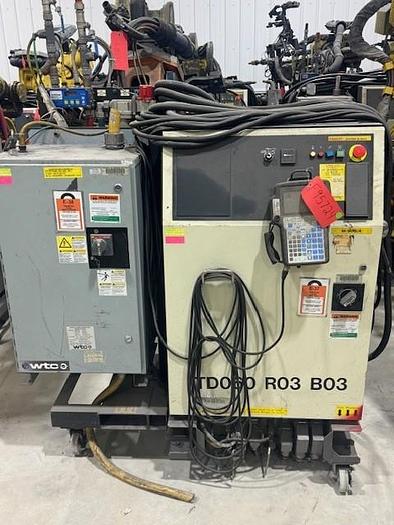

R30iA CONTROLLER

CABLES

COLOR TEACH PENDANT

ALUMINUM SPOT WELD GUN

THE M900iA SERIES ROBOT IS ENGINEERED FOR PRECISE, VERY HIGH PAYLOAD/HIGH SPEED

OPERATION. THE M900iA SERIES IS A SIX AXIS, ELECTRIC SERVO DRIVEN FAMILY OF ROBOTS

DESIGNED FOR A VARIETY OF MANUFACTURING AND SYSTEM PROCESSES.

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.
