FANUC M-710iC/70 6 AXIS ROBOT WITH R-30iB CONTROL

1-USED FANUC M-710iC/70 6 AXES ROBOT WITH FANUC R-30iB CONTROLLER

SERIAL NUMBER F177970

DATE OF MFG. 03/2016

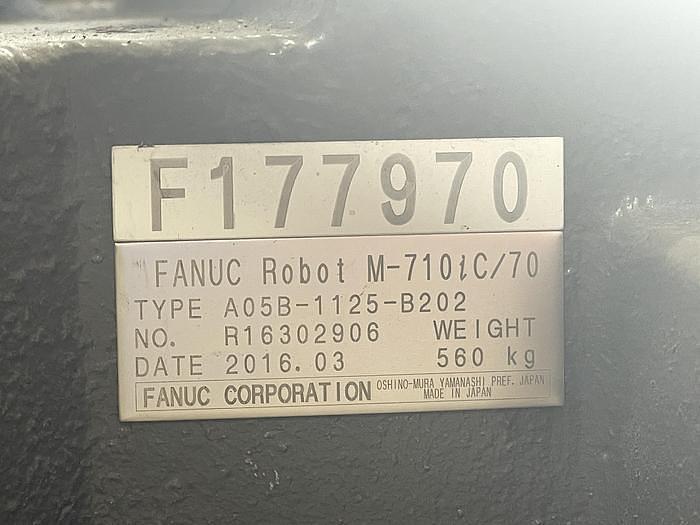

FANUC MECHANICAL ARM TYPE A06B-1125-B202

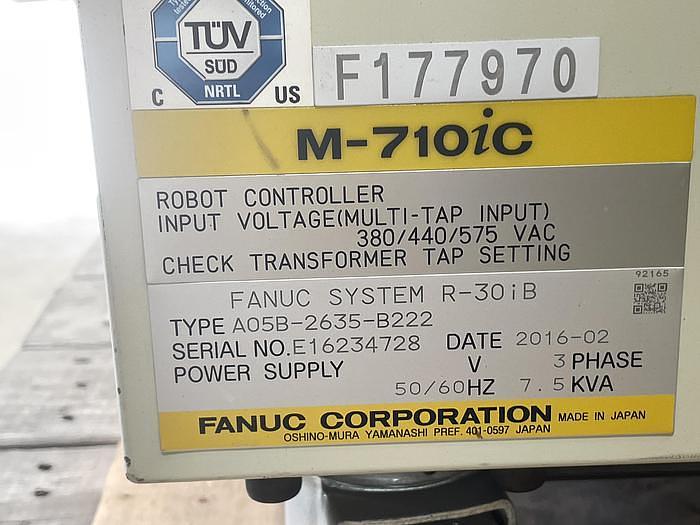

FANUC R-30iB CABINET TYPE A05B-2635-B222

HOURS SHOWN ON METER 680

STK#104148

===================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

The Fanuc M-710iC/70 is the heaviest M-710 in the series and highly sought after. It runs on the Fanuc R30iA or R30iB controller depending on the date of manufacture. This innovative series of lightweight robots features a slim wrist, rigid arm and small footprint. Offering best payload and inertia in its category, this powerful 6-axis model is suitable for various applications and combines a 70 kg payload with extremely high axis speeds. The robot can be deployed for a large array of applications.

Robot Specifications:

Axes: 6

Payload: 70kg

H-Reach: 2050mm

Repeatability: ±0.07mm

Robot Mass: 560kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 160 °/s (2.79 rad/s)

J2 120 °/s (2.09 rad/s)

J3 120 °/s (2.09 rad/s)

J4 225 °/s (3.93 rad/s)

J5 225 °/s (3.93 rad/s)

J6 225 °/s (3.93 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±225°

J3 ±440°

J4 ±720°

J5 ±250°

J6 ±720°

Applications:

Material Handling Robots

Part Transfer Robots

Machine Loading Robots

Assembly Robots

Packaging Robots

Arc Welding Robots

Spot Welding Robots

Cutting Robots

Fiberglass Cutting Robots

Material Removal Robots

EQUIPPPED WITH:

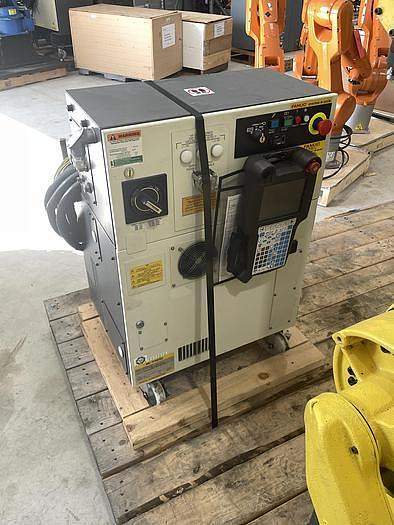

Fanuc R-30iB Controller

Fanuc Robot Connection Cables

Fanuc Color I Pendant
