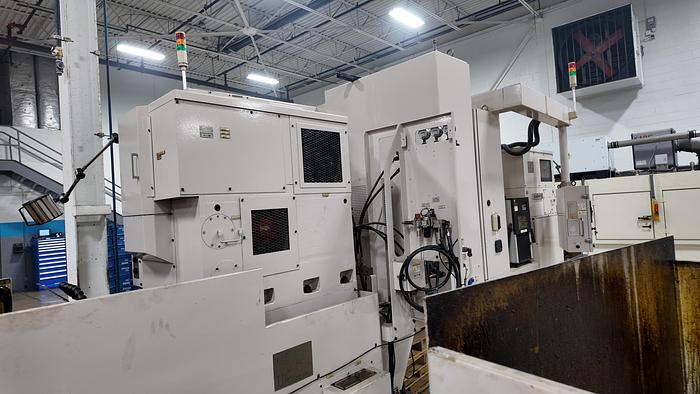

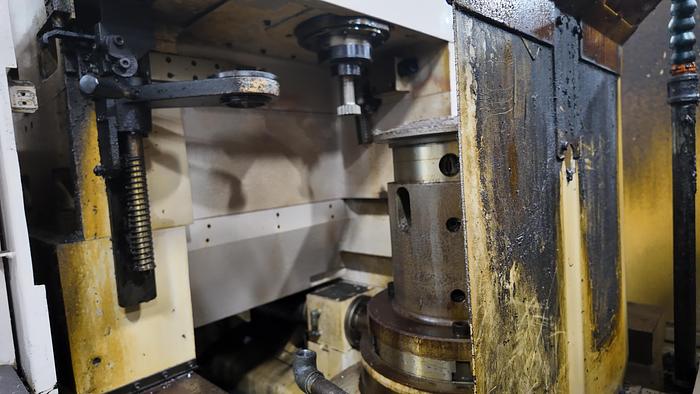

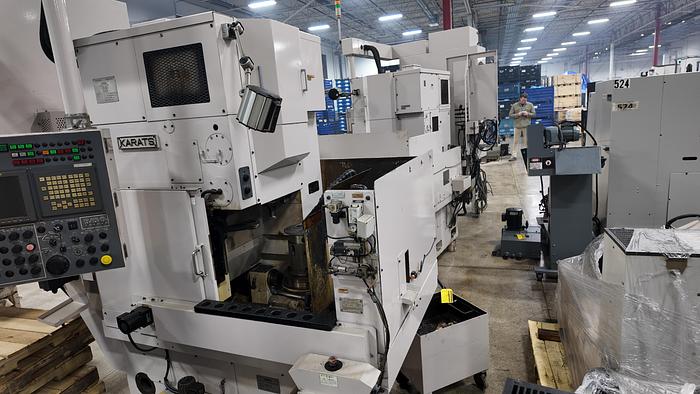

KARATS GSM-12N GEAR SHAPER

KARATS GSM-12N GEAR SHAPER

STOCK # 104150

YEAR 2006

SPECIFICATIONS:

==================================================================

Maximum Modul 4

Max Diametral pitch 6.35

Maximum width of gear face 50 mm 1.9685"

Max diameter pitch circle (External Gear) 180 mm 7.087"

Max diameter pitch circle (Internal Gear) 120 mm 4.7" + cutter diam

Max Helical angle (with optional guides) 45 degrees +/-

Minimum Helical lead of cutter 400 mm 15.748"

Max/Min center distance (spindle -Table ) 205 mm/ -60 mm

Max clearance height above table 310 mm/ 12.2"

Min clearance height above table 260 mm/ 10.236"

Max diameter of work table 250 mm/ 9.8425"

Max diameter of hole through work table 70 mm/ 2.7559"

Diameter of cutter spindle 90 mm/ 3.5433"

taper hole in cutter spindle 45 mm(1/12 taper)

1.7717"

strokes per min max 1500

number of cuts as required

main drive (cutter stroke) motors AC 5.5 kW

main power 220Volt

machine dimensions (135" Length x 75" width x 113" height)

machine is equipped with the following "

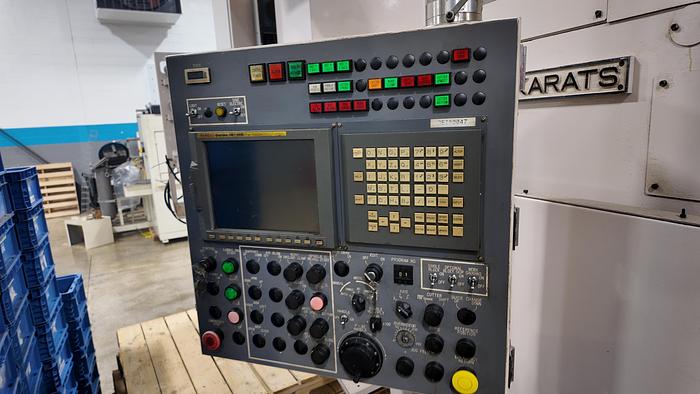

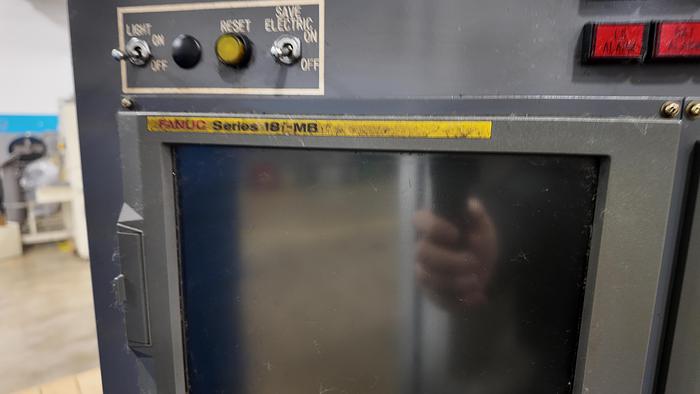

Fanuc 18 IM 4 axis cnc controls

Hydrostatic spindle

Oil chilling system

180 degree loader and loading station

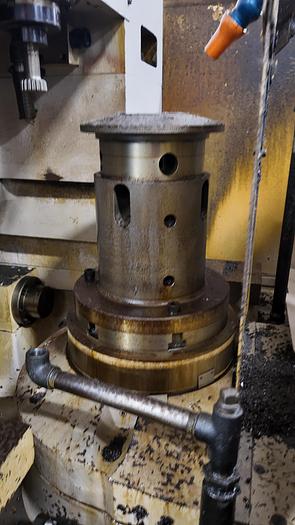

hydraulic table clamping

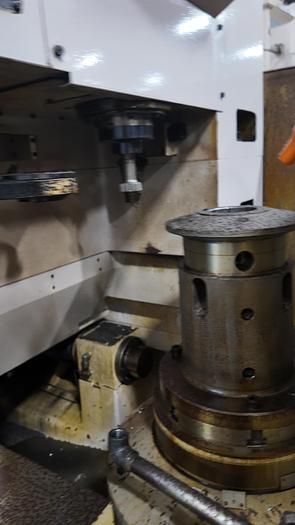

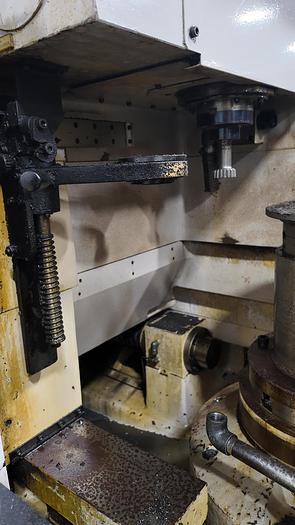

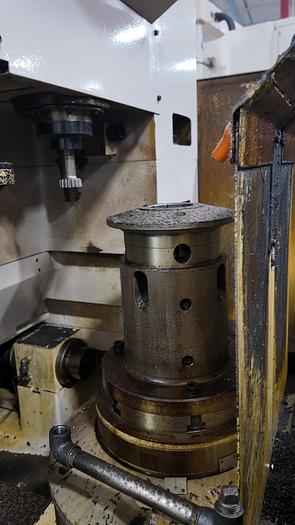

pinion support and tailstock w/ center

chip conveyor

full enclosure

pendant control
