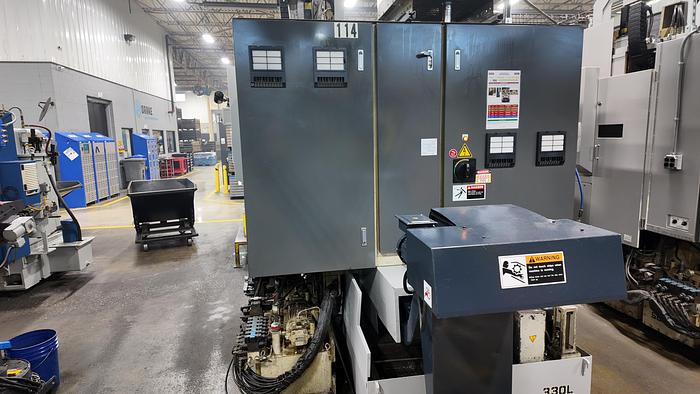

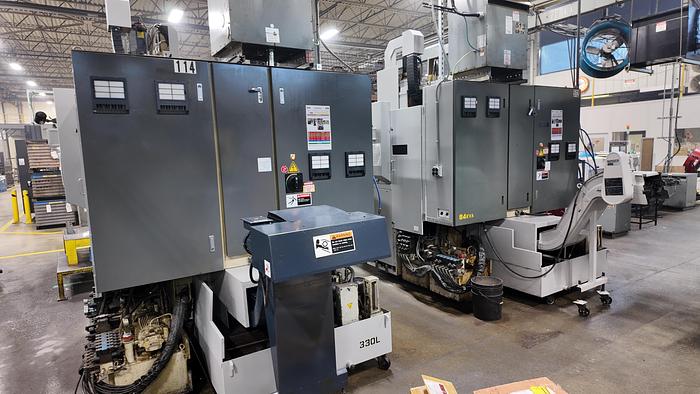

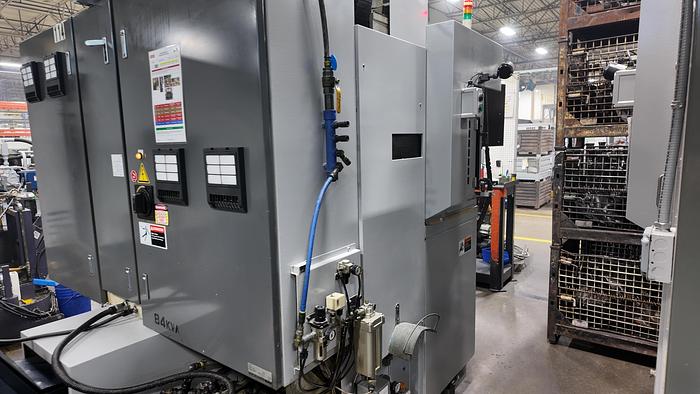

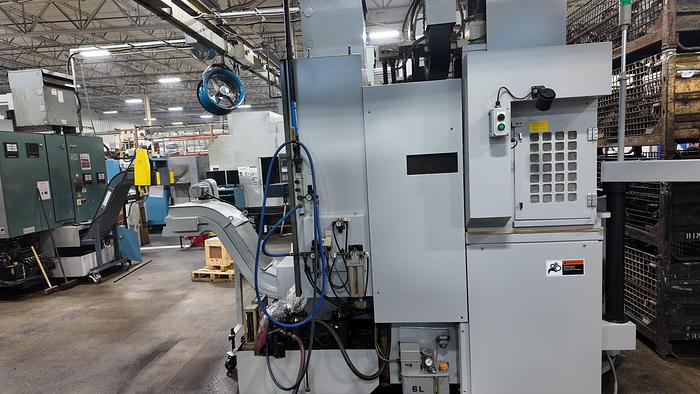

2007 Kitako VT4-350 4 Spindle Verticaal Turning Center

Kitako VT4-350 4 Spindle Verticaal Turning Center

Year 2007

Stock # 104145

Specifications:

=====================================================================

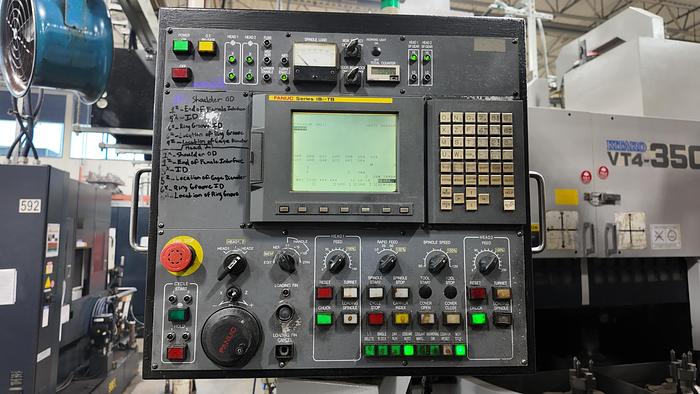

CNC Control Fanuc 18TB CNC Control

# Spindles 4

Chuck Size 12"

Max Turning Diameter 13.8"

Max Turning Length 7.9"

X-Axis (Cross Travel) 11.81"

Z-Axis (Longitudinal Travel) 17.72"

Spindle Nose A2-8

Spindle Horsepower 25 HP

Spindle Speed Range 25 - 3,200 RPM

X-Axis Rapid Traverse Rate 787 IPM

Z-Axis Rapid Traverse Rate 945 IPM

Approximate Machine Dimensions 106" x 98"

Approximate Machine Height 115"

Approximate Machine Weight 27,500LBS

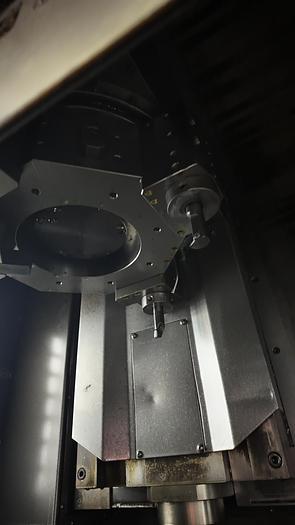

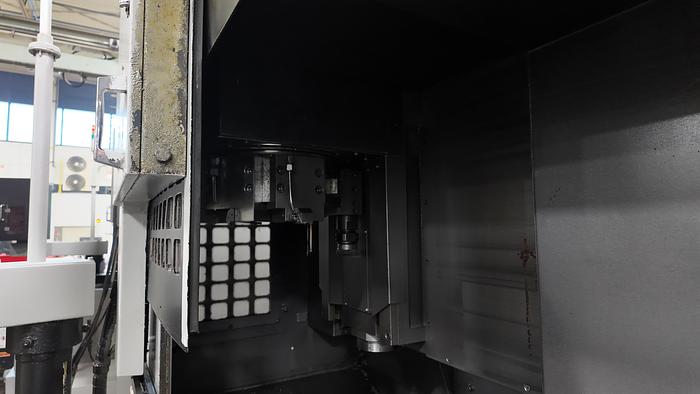

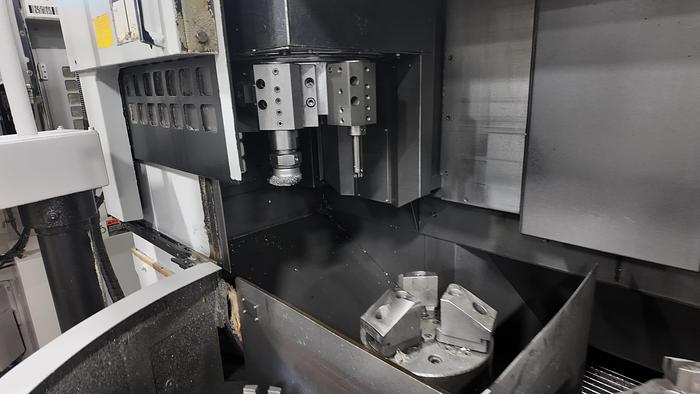

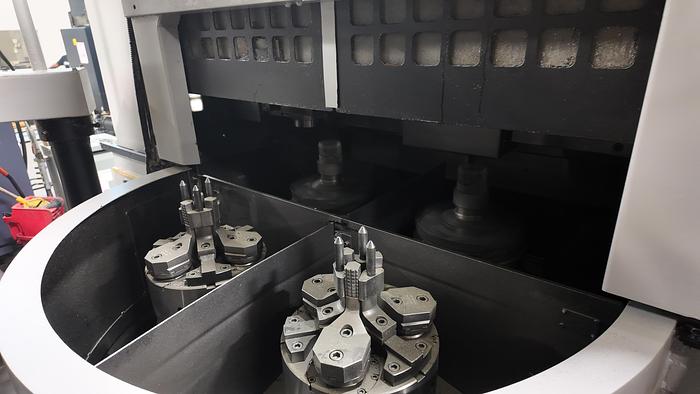

Fanuc 18TB CNC Control, RS-232 Port, Background Edit, (4) Spindle Design with (2) in the Machining Area and (2) in Load Position, Separate Drive for Each Spindle, (4) 12" 3-Jaw Power Chucks, Hydraulic Actuators on all (4) Spindles For Chucks or Hydraulic Clamping. Spindle Orientation, 6 Position Tool Turrets, Chip Conveyor and Coolant System
