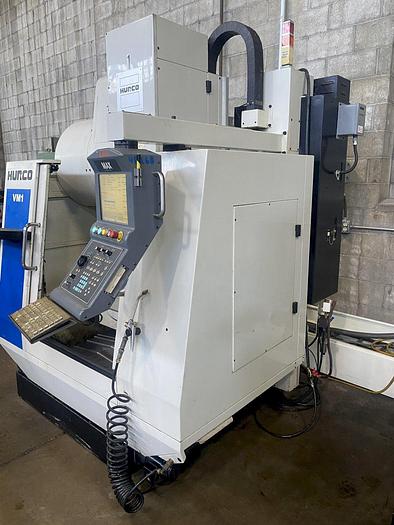

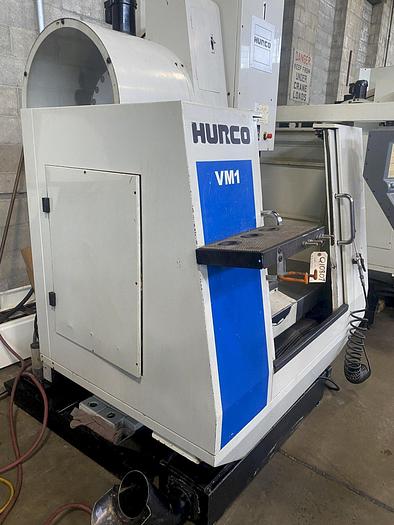

HURCO VM-1 CNC VERTICAL MACHINING CENTER

HURCO VM-1 CNC VERTICAL MACHINING CENTER

YEAR 2007

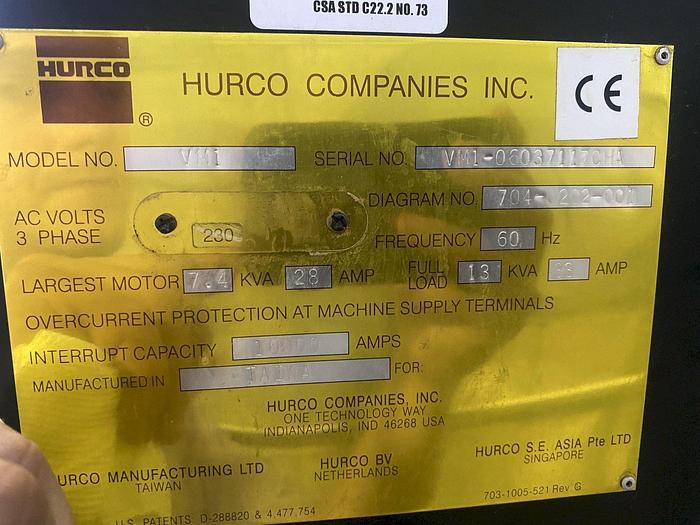

SN VM1=06037117CHA

STOCK # 104141

SPECIFICATIONS SUBJECT TO VERIFICATION

=========================================================

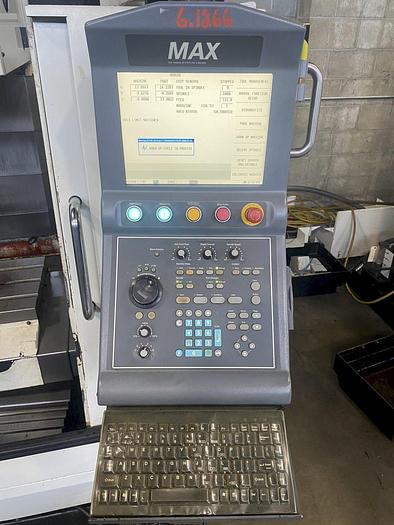

Type of CNC Control Hurco UltiMax CNC Control

# Axis 3

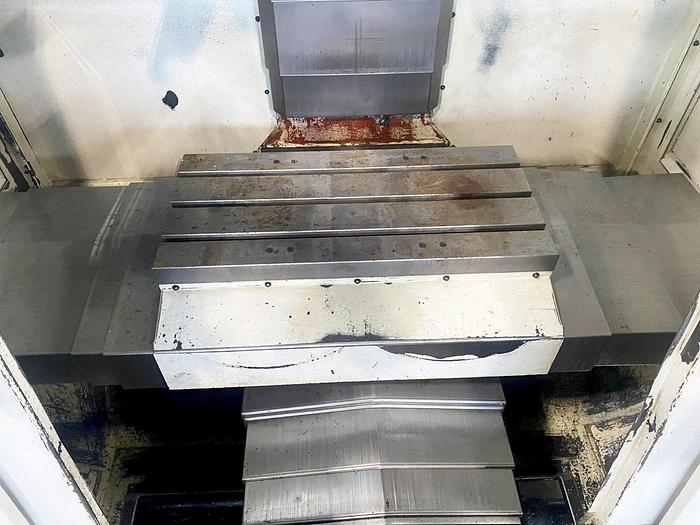

Table Size 30" x 14"

Table Load Capacity 750 LBS

X-Axis (Longitudinal Travel) 26"

Y-Axis (Cross Travel) 14"

Z-Axis (Vertical Travel) 18"

Rapid Traverse Rate, All Axes 750 IPM

Spindle Horsepower - Peak (1 Min. Rating @ 1450 RPM) 15 HP (11 kW)

Spindle Horsepower - Continuous 10 HP (7.5 kW)

Max Spindle Speed 8,000 RPM

Spindle Taper CAT 40

Torque, Up To 54 FT-LBS @ 1,450 RPM

Automatic Tool Changer Capacity (ATC) 16

Automatic Tool Changer Style Side Mount Swing-Arm

Electrics 230/3/60

Approximate Machine Dimensions 91" x 78"

Approximate Machine Height 96"

Approximate Machine Weight 6,500 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

Equipped With

Hurco UltiMax CNC Control, 30" x 14" Table, Rigid Tapping, Manual Pulse Generator (MPG), RS-232 Port, Central Lubrication System, 16 Station Tool Changer, Coolant System.
