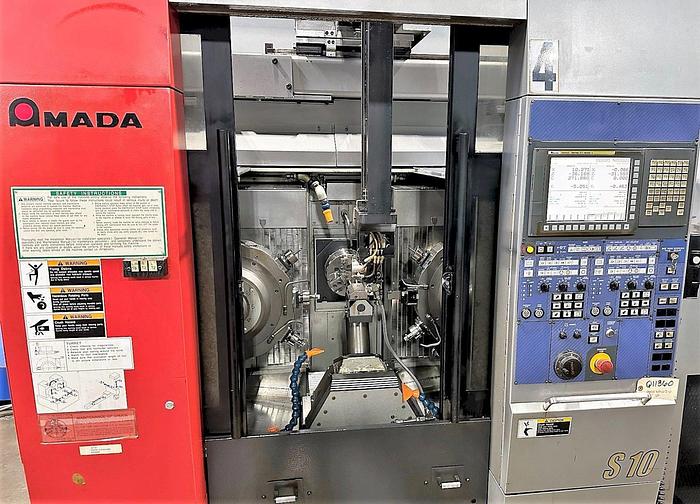

DMG AMADA WASINO S10 8-AXIS CNC MULTI-TASKING TURNING/MILLING CENTER

DMG AMADA WASINO S10 8-AXIS CNC MULTI-TASKING TURNING/MILLING CENTER

YEAR 2012

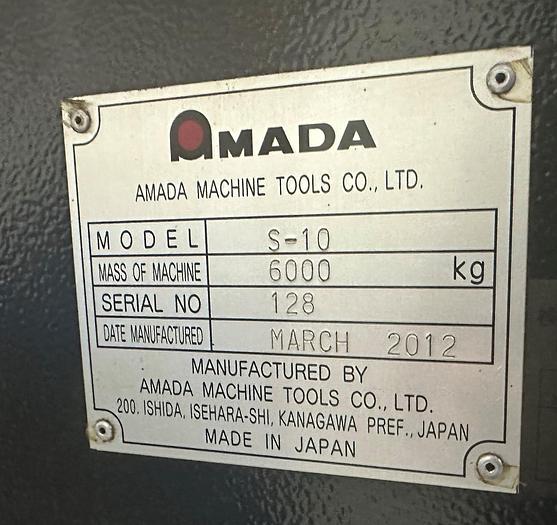

SN 128

STOCK #104139

SPECIFICATIONS SUBJECT TO VERIFICATION

================================================================

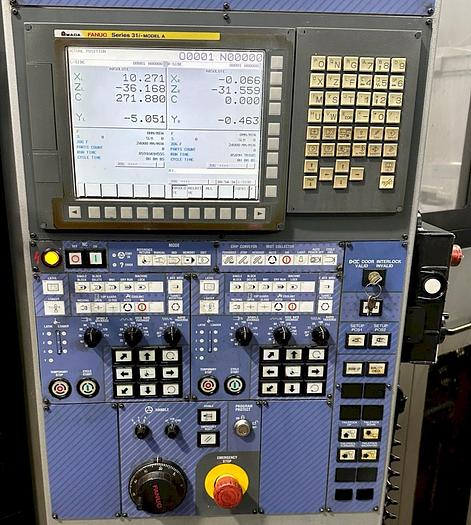

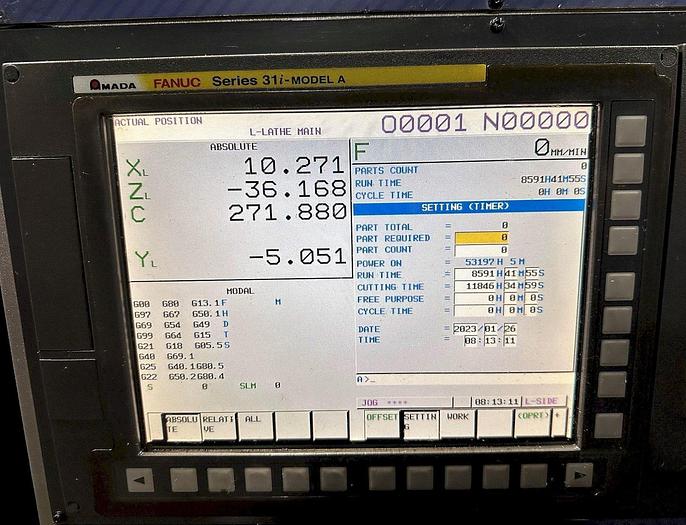

Type of CNC Control Fanuc 31i Model B CNC Control

# Axis 8

Chuck Size 6"

Max Swing Over Bed 12.20"

Max Turning Diameter 10.24"

Max Distance Between Centers 10.63"

X-Axis (Cross Travel of Left Turret) 5.91"

Z-Axis (Longitudinal Travel of Left Turret) 13.39"

Y-Axis (Both Turrets) TBD

X2-Axis (Cross Travel of Right Turret) 5.91"

Z2-Axis (Longitudinal Travel of Right Turret) 13.39"

Spindle Horsepower 20 HP (30 minute) / 14 HP (Continuous)

Max Spindle Speed 5,000 RPM

X-Axis Cross Travel Rapid Traverse Rate 994.88 IPM

Z-Axis Longitudinal Rapid Traverse Rate 1,260 IPM

C-Axis (Both Turrets) .001

Left Turret Live Tooling Horsepower 6 HP

Left Turret Live Tooling Speed Range 6,000 RPM

Left Turret Tool Capacity 12

Right Turret Tool Capacity 12

Tailstock? Yes

Approximate Machine Dimensions 66.9" x 78.7"

Approximate Machine Height 80"

Approximate Machine Weight 12,500 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

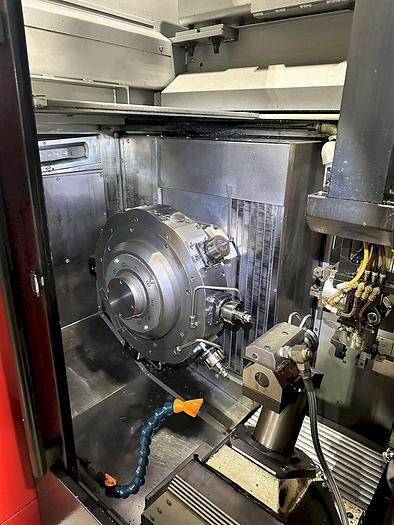

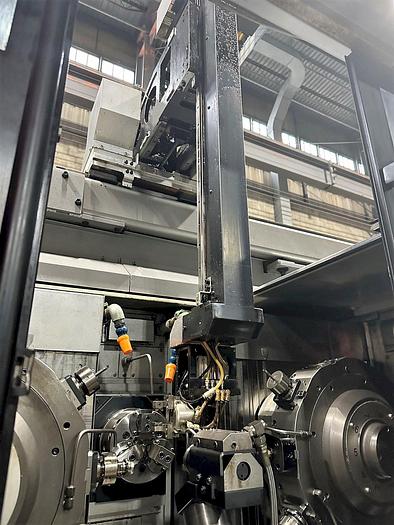

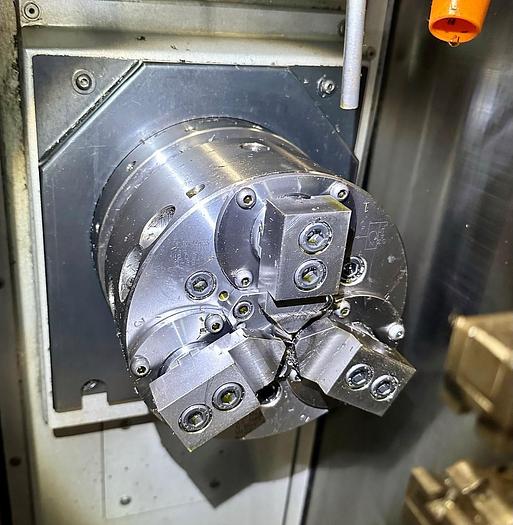

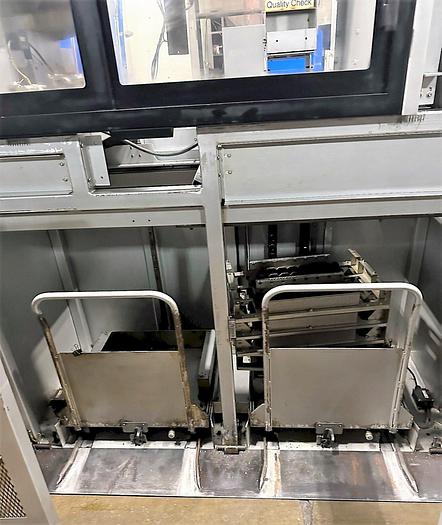

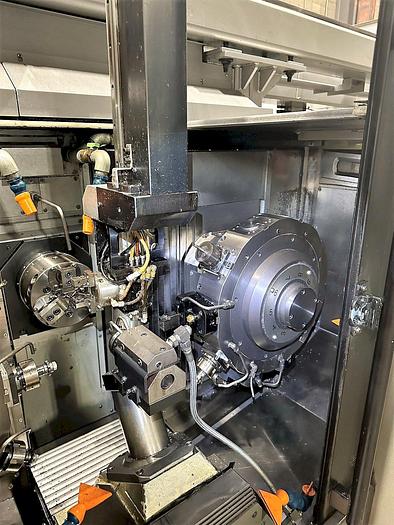

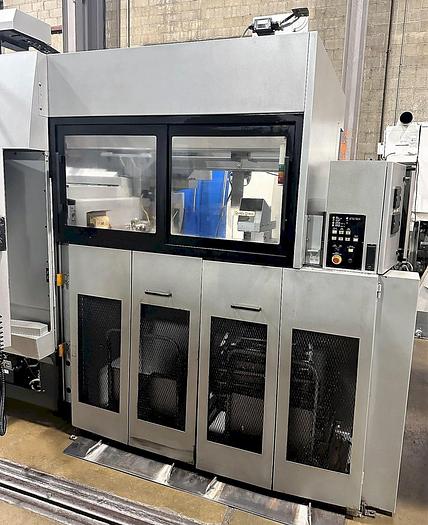

Simultaneous Dual 3-Axis 12-Position Turrets both with Live Tooling/Milling Capability, Automatic Gantry Load and Unload 2-Axis Robot System with Parts Stacker for High Precision and High Throughput, Fanuc 31i Model B CNC Control, 6" Howa H3YS6 Power Chuck, Y-Axis, C-Axis, Remote Handwheel, Part Gauging, Coolant System & Chip Conveyor.

*(3) Machines Available
