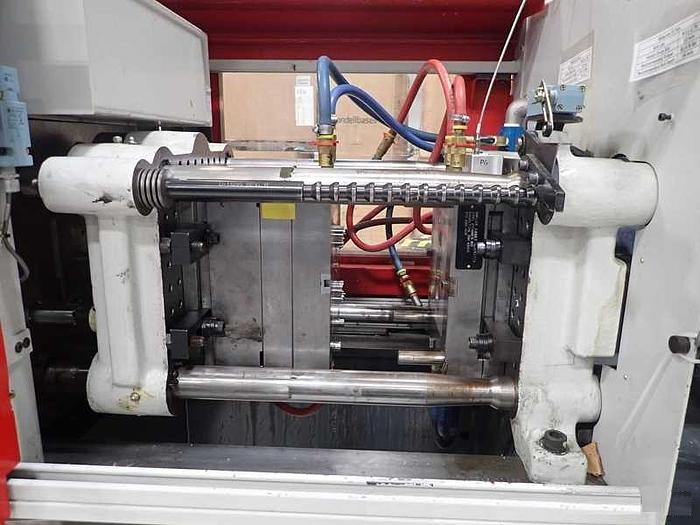

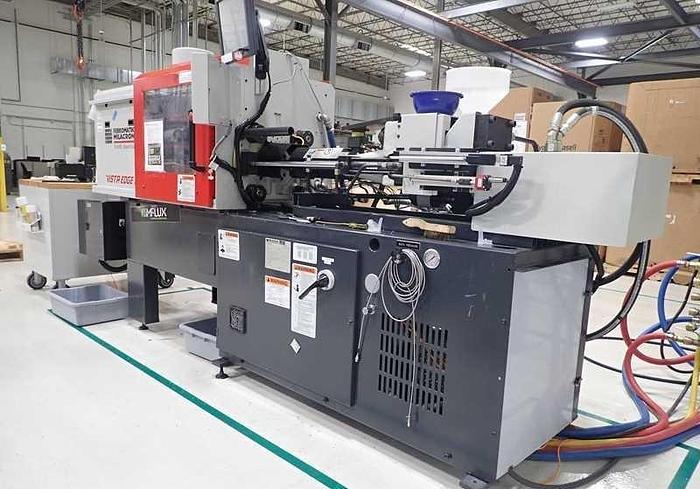

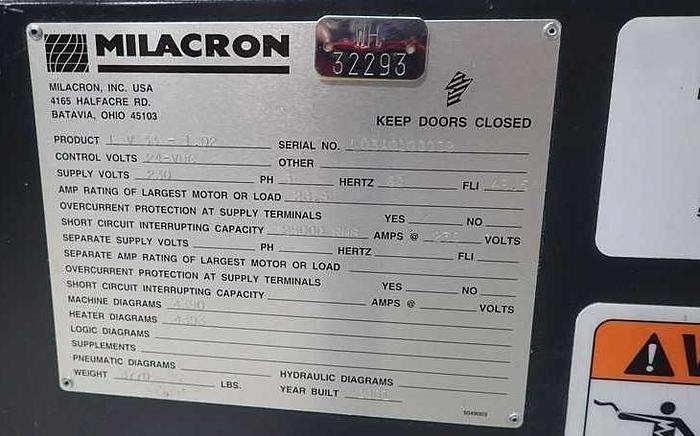

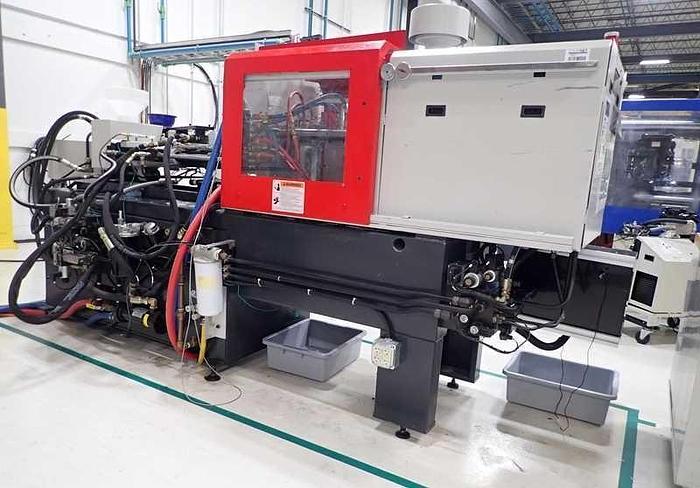

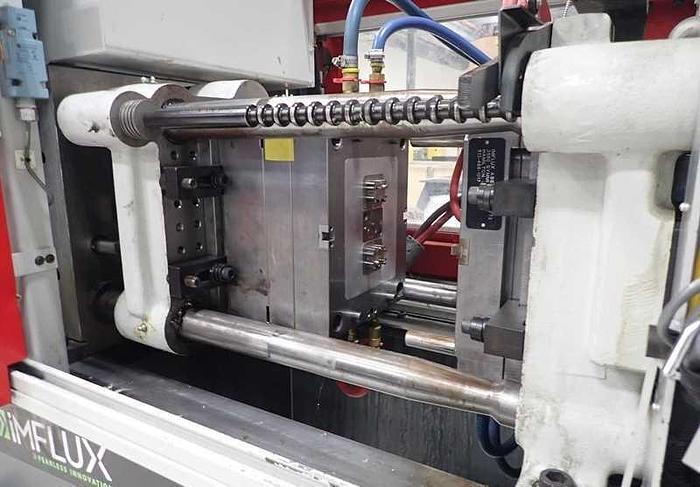

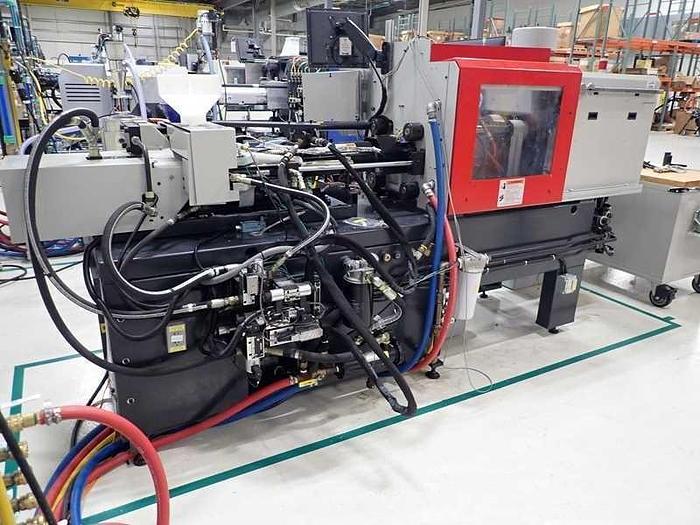

FERROMATIK MILACRON VISTA EDGE LV33 INJECTION MOLDER

FERROMATIK MILACRON VISTA EDGE LV33 INJECTION MOLDER

YEAR 2001

STOCK # 104136

SPECIFICATIONS TO BE VERIFIED BUY BUYER

============================================================================

Type of CNC Control Vista Edge Panelware Control

Horz/VerthorizontalClamp Force 294 kN | 33 Tons

Mold Opening Stroke 350mm

Max/Min Mold Height 11.811" / 7.874"

Max Daylight Between Platens 550mm

Overall Size of Platens 340mm x 380mm

Distance Between Tie Bars 280mm x 254mm

Ejector Stroke 80mm

Ejector Force 17.6 kN

Retraction Force 17.6 kN

Screw Diameter 18mm

Max Injection Plastic Pressure 2,704 bar

Cylinder Head Volume 31 cc

Max Shot Weight in PS 29 g

Rate of Injection PS 34.2 g/s

Screw Stroke 120mm

Electrics 230/3/60

Approximate Machine Dimensions 144" x 36"

Approximate Machine Height 72"

Approximate Machine Weight 5,000 LBS

CONDITION: This Machine Appears to be in Excellent Condition !
