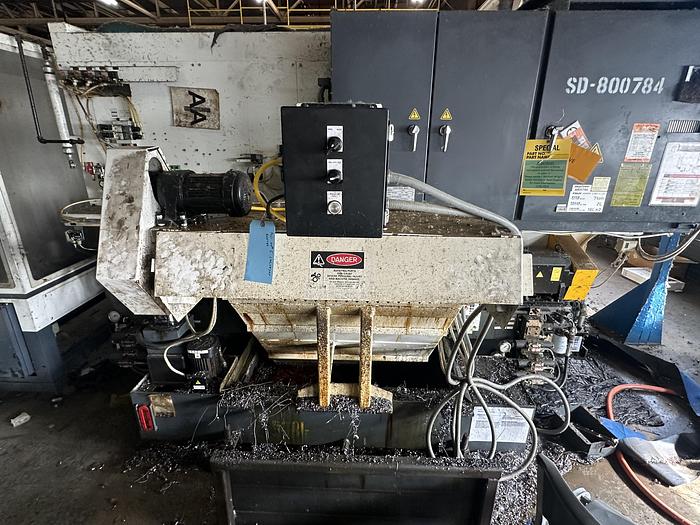

2013 FUJI ANW 35 TWIN TURRET CNC LATHE, TAIL STOCK WITH ROBOT LOAD/UNLOAD AND STOCKER TABLES

FUJI ANW 35 TWIN TURRET CNC LATHE, TAIL STOCK WITH ROBOT LOAD/UNLOAD AND STOCKER TABLES

YEAR 2013

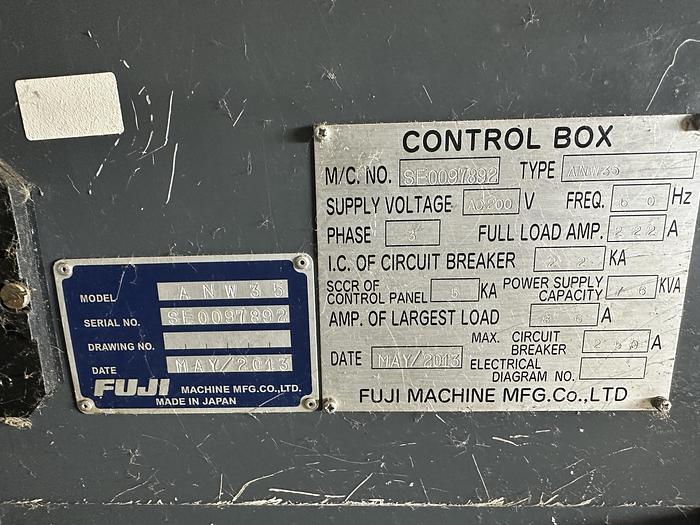

SN SE0037892

STOCK # 104117

BASIC SPECS:

================================================================

• Recommended work size: 250 x 110 mm (9.8 x 4.3 in)
• Spindle diameter: 100 mm (3.9 in)
• Spindle speed: Max 3,500 rpm
• Spindle motor: 15/18.5 kW (20/25 hp)

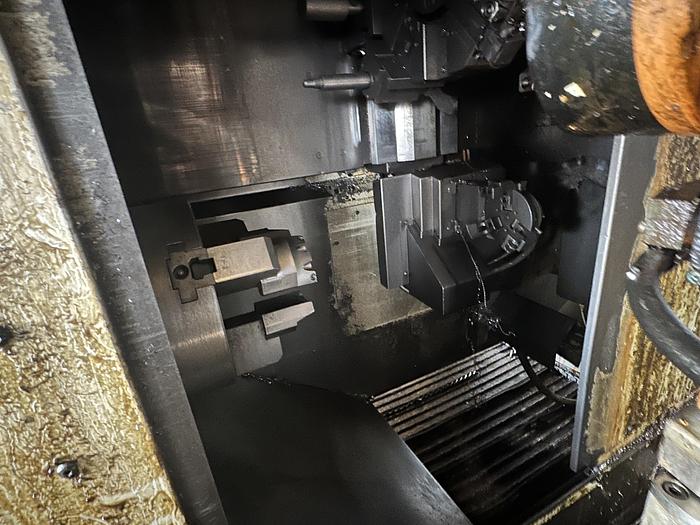

• Number of tool stations: 8 + 8
• Turret index time: 0.4 sec
• Chuck size: 8–10 in

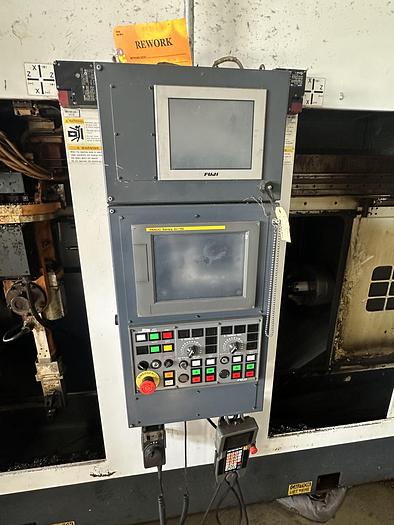

• CNC control: FANUC 0i-TD
• Slide stroke: X-axis 225 mm (8.86 in), Z-axis 405 mm (15.94 in)
• Feed motor: X-axis 3.0 kW (4.0 hp), Z-axis 3.0 kW (4.0 hp)

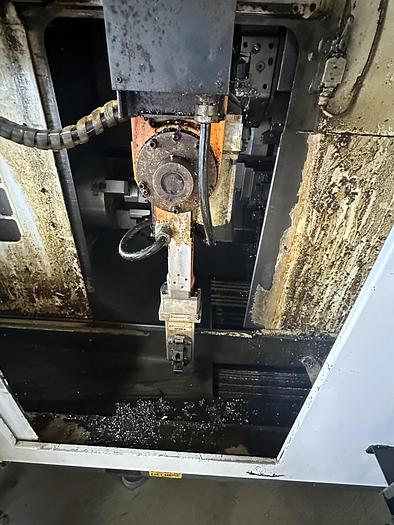

• Robot: L292-L, carrying capacity 7 + 7 kg (15 + 15 lbs)

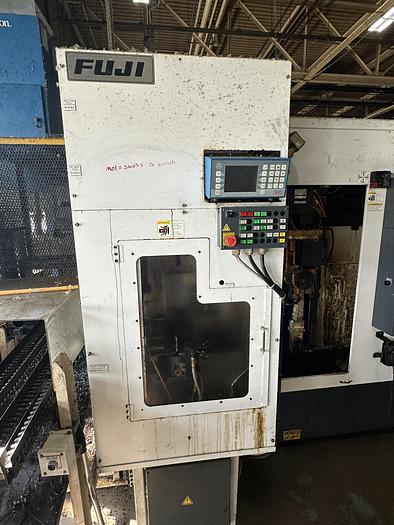

• Robot controller: MAX SP1
• Work length: 250 mm (10 in)

The ANW series of CNC lathes have a number of features, including:

• A vertical column with the cutting point above the chip disposal chute

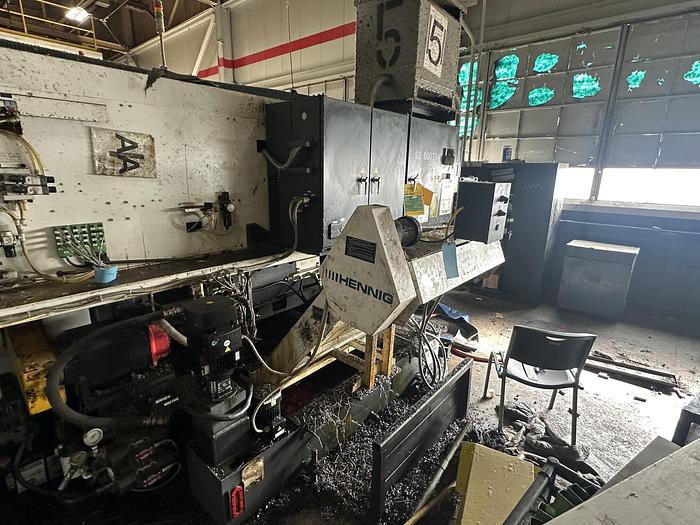

• A hinge-type chip conveyor to clear chips from the cutting area
• Dual covers to separate the robot parts transport and machining areas
• Dual opposed spindles for light and heavy machining
• A display that shows counters and wear offsets
