FANUC R-2000iB/165F WITH R30iB WITH 7TH AXIS SERVO SPOT WELD GUN AND 8TH AXIS 3 METER RTU

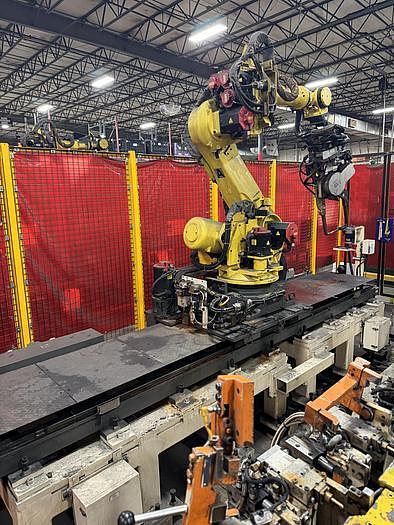

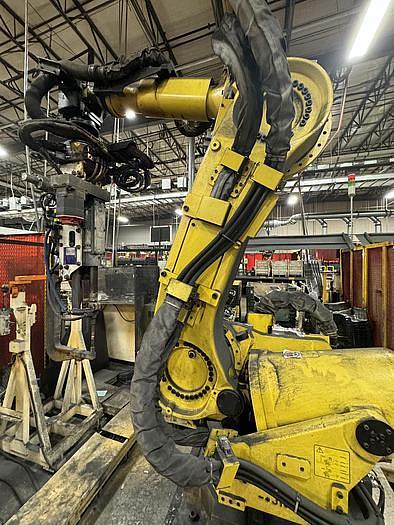

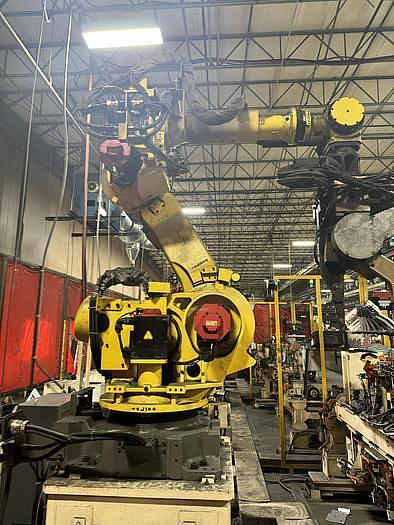

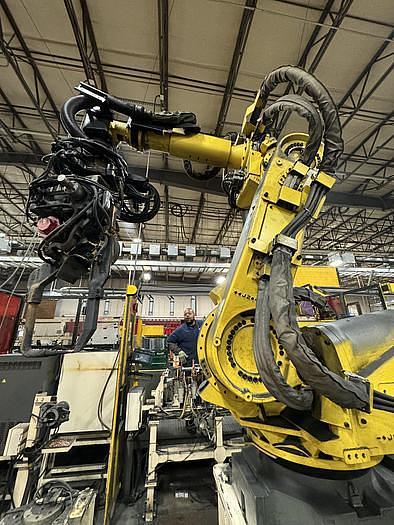

1-USED FANUC R-2000iB/165F 6 AXIS ROBOT WITH R-30iB CONTROLLER SERVO SPOT WELDING

ROBOT ON 3 METER ROBOT TRANSFER UNIT

SERIAL NUMBER

DATE OF MFG. 2014

STK#104100

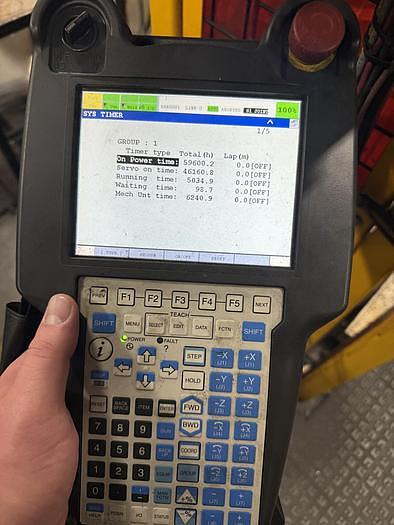

HOURS ON METER 6,240

===============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

5 UNITS AVAILABLE. ALL ARE EQUIPPED WITH SERVO SPOT WELDING GUNS AND CONTROLS.

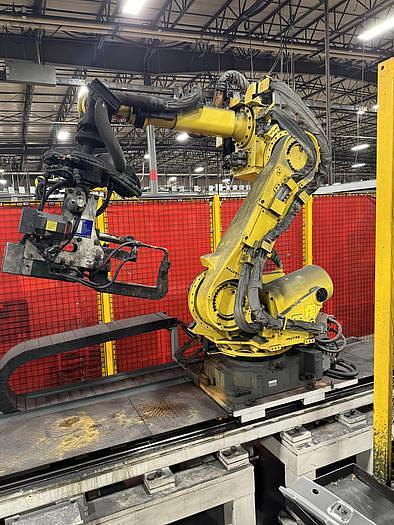

MOUNTED ON ROBOT TRANSFER UNITS.

The Fanuc R-2000iB/165F is a heavy payload robot that is a perfect addition to the factory floor for. Great for material handling, spot welding, dispensing, and many more applications. This is also a great robot to work in small spaces as it has a slim arm and wrist assemblies. Integration is also made easier with its numerous process attachment points. You can also expect higher up-time, overall productivity, and greater through put with the R-2000iB/165F on your production line. The Fanuc R-2000iB/165F Runs on the Fanuc R30iA Controller or Fanuc R30iB Controller depending on date of manufacture.

Robot Specifications:

Axes: 6

Payload: 165kg

H-Reach: 2655mm

Repeatability: ±0.2mm

Robot Mass: 1170kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 110 °/s (1.92 rad/s)

J2 110 °/s (1.92 rad/s)

J3 110 °/s (1.92 rad/s)

J4 150 °/s (2.62 rad/s)

J5 150 °/s (2.62 rad/s)

J6 220 °/s (3.84 rad/s)

Robot Motion Range:

J1 ±180°

J2 +75° - 60°

J3 +230° - 132°

J4 ±360°

J5 ±125°

J6 ±360°

Applications:

Spot Welding Robots

Injection Molding Robots

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Assembly Robots

Cutting Robots

Fiberglass Cutting Robots

Foundry Robots

EQUIPPED WITH:

FANUC 7TH AXIS DRIVE FOR SPOT WELDING GUN

FANUC 8TH AXIS TO DRIVE RTU

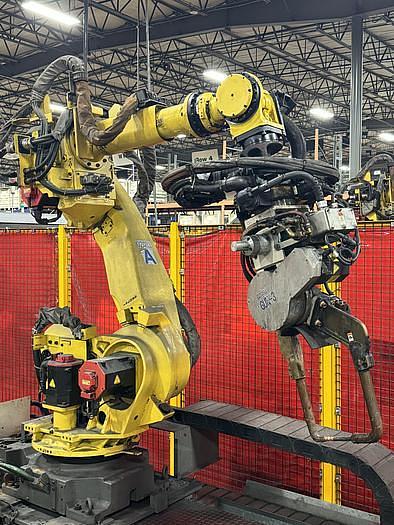

DENGENSHA SERVO SPOT WELD GUN AND POWER SUPPLY

& DENGENSHA PROGRAM BOX PBM-770E

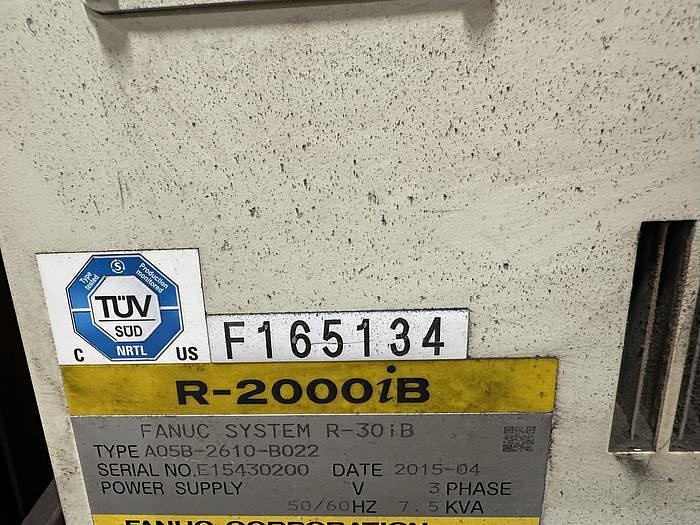

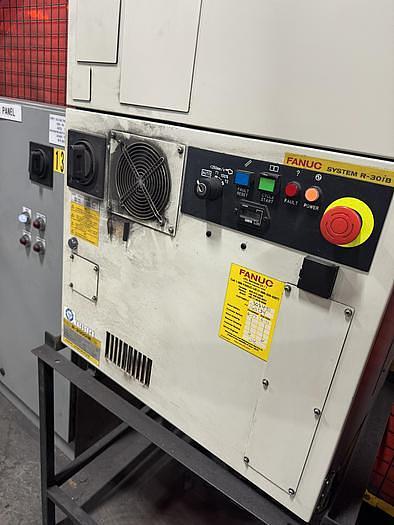

FANUC R-30iB ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC COLOR TEACH PENDANT

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
