NELSON/FANUC STUD WELDING CELL WITH FANUC M-710iC/50 R-30iB AND ROBOT INTERFACE

NELSON/FANUC STUD WELDING CELL WITH FANUC M-710iC/50 R-30iB AND ROBOT INTERFACE

Contact us for price

Location:Imlay City, MI

orCall 1-231-526-7135 fax

Description

1-USED FANUC M-710iC/50 6 AXIS ROBOT WITH R-30iB CONTROLLER,

NELSON STUD WELDING CELL

DATE OF MFG. 2014

RUN HOURS: ABOUT 10,000

FANUC MECHANICAL ARM TYPE PART NUMBER A05B-1125-B201

FANUC R-30iB CONTROLLER TYPE PART NUMBER A05B-2610-B222

STK#104099

=======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:


We find the Fanuc M-710iC/50 robot to be one of the most sought after robots. It's a Fanuc intelligent robot. Depending on date of mfg., this model runs on the Fanuc R30iA or R30iB controls platform. They are a midsize robot with a robust array of applications they can be deployed for. Assembly, Arc Welding, dispensing, machine tending, palletizing and list goes on only limited to your imagination as to what you might deploy this robot to do in you operations.


Robot Specifications:

Axes: 6

Payload: 50kg

H-Reach: 2050mm

Repeatability: ±0.07mm

Robot Mass: 560kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 175 °/s (3.05 rad/s)

J2 175 °/s (3.05 rad/s)

J3 175 °/s (3.05 rad/s)

J4 250 °/s (4.36 rad/s)

J5 250 °/s (4.36 rad/s)

J6 355 °/s (6.2 rad/s)


Robot Motion Range:

J1 ±360°

J2 ±225°

J3 ±440°

J4 ±720°

J5 ±250°

J6 ±720°


Applications:

Dispensing Robots

Machine Loading Robots

Material Handling Robots

Cutting Robots

Fiberglass Cutting Robots

Foundry Robots

Material Removal Robots

Meat Processing Automation Robots

Arc Welding Robots

Waterjet Robots


EQUIPPED WITH:

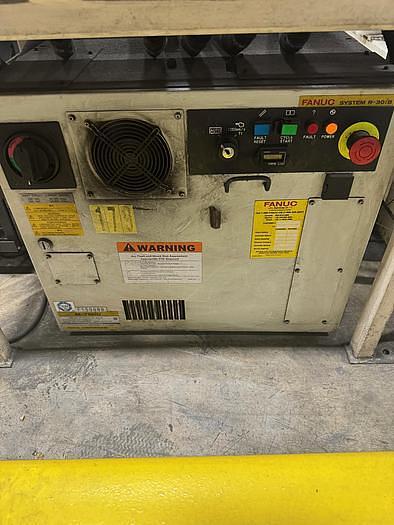

FANUC R-30iB CONTROLLER

FANUC ROBOT CONNECTION CABLES

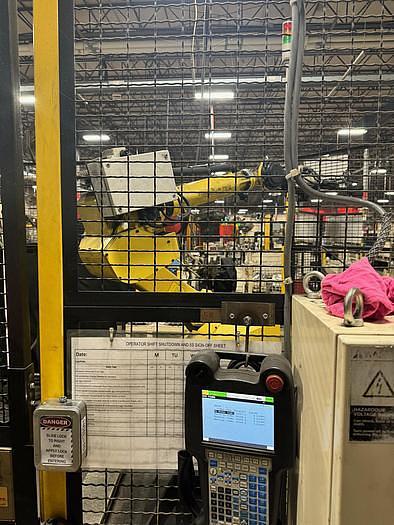

FANUC COLOR I-PENDANT

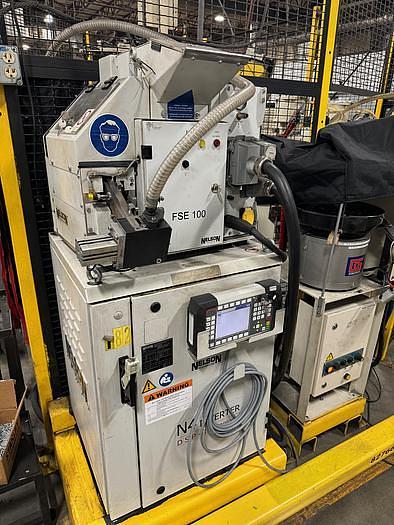

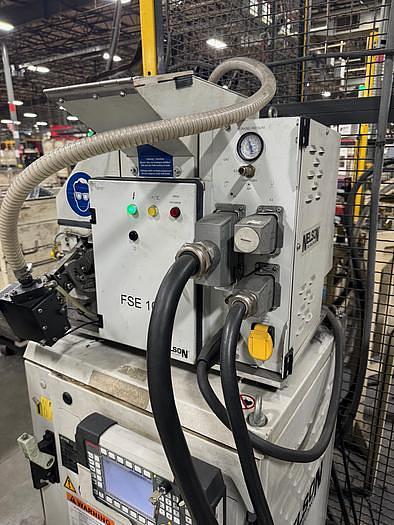

NELSON STUD WELDER

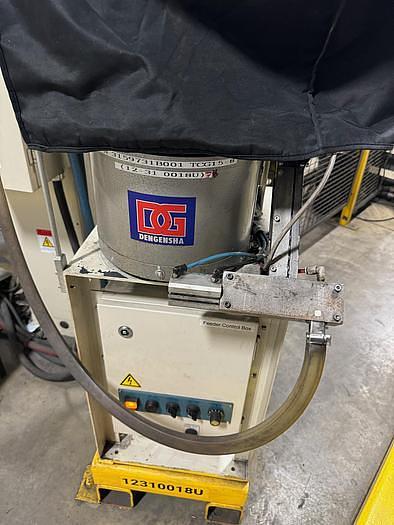

DENGENSHA NUT FEEDER

ROBOTIC INTERFACE FOR NELSON STUD WELDER

NELSON TEACH PENDANT FOR STUD WELDER


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

Specifications

ManufacturerNELSON/FANUC
ModelSTUD WELDING CELL WITH FANUC M-710iC/50 R-30iB AND ROBOT INTERFACE
ConditionUsed
Stock Number104099
