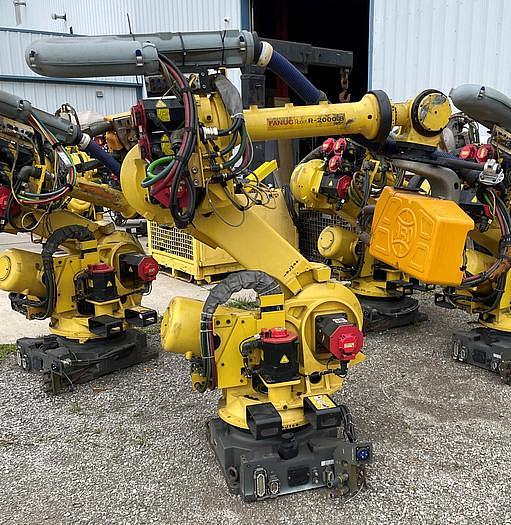

2010 FANUC R2000iB/165F WITH R30iA CONTROLS

25-FANUC R-2000iB/165F 6 AXIS ROBOT WITH R-30iA CONTROLLER

DATE OF MFG. 2009/10

STK#104074

=======================================

The Fanuc R-2000iB/165F is a heavy payload robot that is a perfect addition to the factory floor for. Great for material handling, spot welding, dispensing, and many more applications. This is also a great robot to work in small spaces as it has a slim arm and wrist assemblies. Integration is also made easier with its numerous process attachment points. You can also expect higher up-time, overall productivity, and greater through put with the R-2000iB/165F on your production line. The Fanuc R-2000iB/165F Runs on the Fanuc R30iA Controller or Fanuc R30iB Controller depending on date of manufacture.

Robot Specifications:

Axes: 6

Payload: 165kg

H-Reach: 2655mm

Repeatability: ±0.2mm

Robot Mass: 1170kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 110 °/s (1.92 rad/s)

J2 110 °/s (1.92 rad/s)

J3 110 °/s (1.92 rad/s)

J4 150 °/s (2.62 rad/s)

J5 150 °/s (2.62 rad/s)

J6 220 °/s (3.84 rad/s)

Robot Motion Range:

J1 ±180°

J2 +75° - 60°

J3 +230° - 132°

J4 ±360°

J5 ±125°

J6 ±360°

Applications:

Spot Welding Robots

Injection Molding Robots

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Assembly Robots

Cutting Robots

Fiberglass Cutting Robots

Foundry Robots

EQUIPPED WITH:

FANUC R-30iA ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC COLOR TEACH PENDANT

FANUC 7TH AXIS DRIVE

FANUC MODEL A IO
