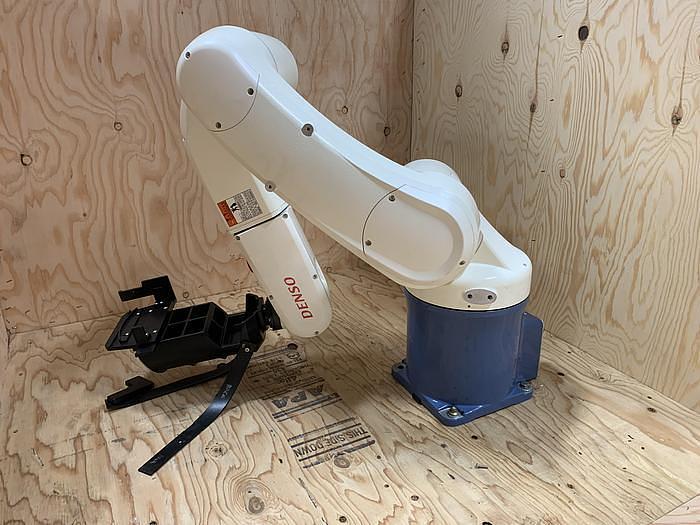

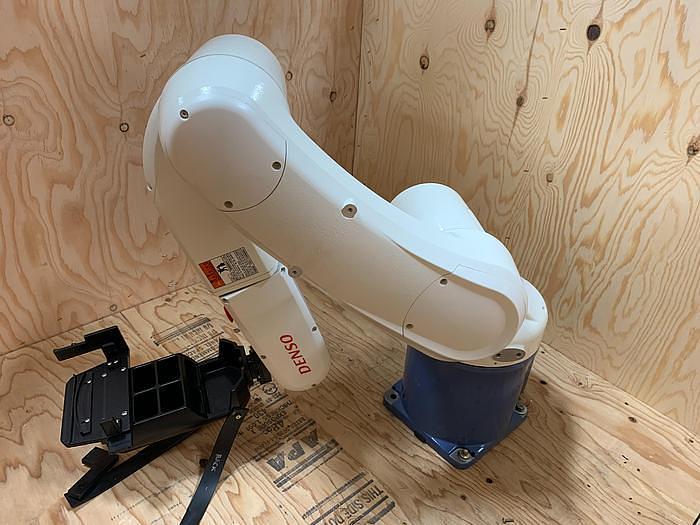

2016 DENSO VS-6577M 6 AXIS CNC ROBOT 7 KG X 854MM REACH RC8 CONTROLLER MINT

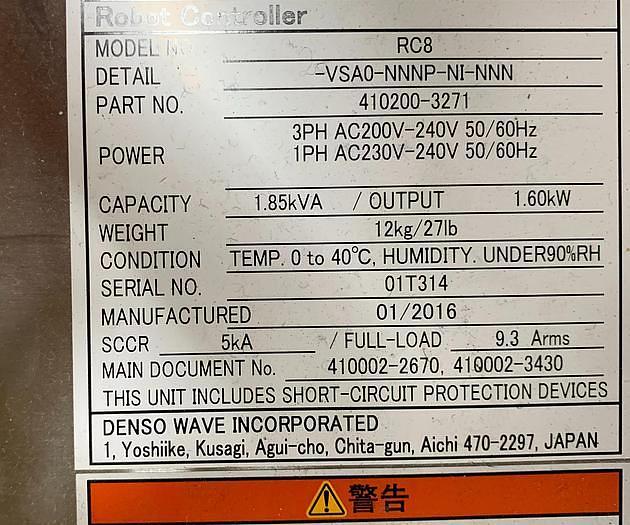

DENSO MODEL VS-6577M 6 AXIS CNC ROBOT 7KG X 854MM REACH SERIAL NUMBER 02T133 DATE OF MFG. 01/2016 STK#103851 ============================== SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: DENSO 6-AXIS ROBOTS VS-6556 / 6577 VS SERIES 854 mm The VS series VS-6577 provides high speed and high power in a compact, slim body. A wide range of options are also available that allow operation in a range of environments. ❚ Position repeatability : from ±0.02 mm to ±0.03 mm ❚ Cycle times : 0.49 s and 0.59 s ❚ Maximum composite speed : from 7,600 mm/s up to 8,200 mm/s ❚ Maximum payload : 7 kg ❚ Arm reach 854 mm ❚ Mounting options : floor and ceiling ❚ ANSI and CE compliance Controller: RC8 Supported on the standard type ❚ cUL authorized product (UL standards / Canada CSA standards) also available 300 mm Cycle time One cycle is the time taken to move an object at a height of 25 mm between two points 300 mm apart. POSITION DETECTION ABSOLUTE ENCODER TOTAL ARM LENGTH 770 MM ARM OFFSET J1 ROTATION 75MM J3 FOREARM 90MM ROBOT MOTION RANGE IN DEGREES: J1 +/- 170 J2 +135 -100 J3 +169 -119 J4 +/-190 J5 +/-120 J6 +/-360 MAXIMUM COMPOSITE SPEED 7600MM/SEC POSITION REPEATABILITY CENTER OF TOOLING +/- 0.03MM USER AIR PIPE 7SYSTEMS, 3 × solenoid valves (2 position, double solenoid) USER SIGNAL LINE 10 (for proximity sensor signals, etc.) PROTECTION GRADE Dust & splash proof type : Wrist IP65 / unit IP54 (option) Cleanroom type : class 10 / 100 WEIGHT 36 KG EQUIPPED WITH: ARM VS-6577M CONTROLLER RC8 CABLES TEACH PENDANT VERY CLEAN READY TO GO BACK TO WORK
