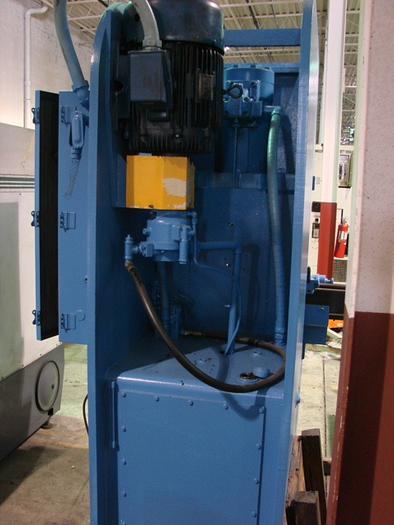

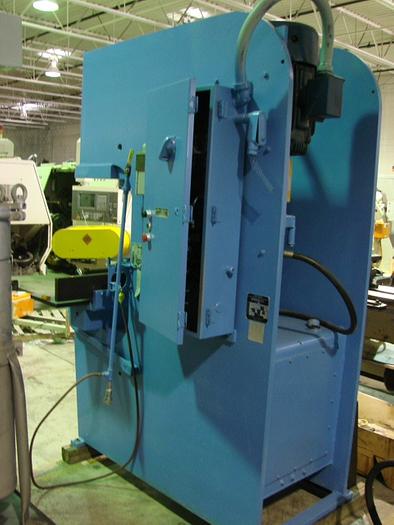

1966 STAMPING PRESS Machines and Equipment N50-30S-C51
1966 STAMPING PRESS Machines and Equipment N50-30S-C51
Contact us for price
Location:Harbor Springs, MI
orCall 1-231-526-7135 fax
Description
CAPACITY 50 TONS CYLINDER BORE 6T" RAM DIAMETER 4.25" STROKE 15" DAYLIGHT 24" THROAT 12" HYDRAULIC OIL RESOVOIR 35 GALLONS MAIN MOTOR HP 30, 1800 RPM PUMP MODEL NUMBER P1FO7-015-51R PUMP GPM 23 MAX PSI 3536 LEVER OPERATED 31" X 21" TABLE SURFACE FLOOR TO TABLE TOP 32" MAX. CENTER DISTANCE ON STRAIGHTENING FIXTURE 34" OVERALL DIMENSIONS 94" TALL X 56" LR X 60" FB APPROX. WEIGHT 8,000 LBS LEVER OPERATED
Specifications
| Manufacturer | STAMPING PRESS Machines and Equipment |
| Model | N50-30S-C51 |
| Year | 1966 |
| Condition | Used |
| Stock Number | 102116 |
