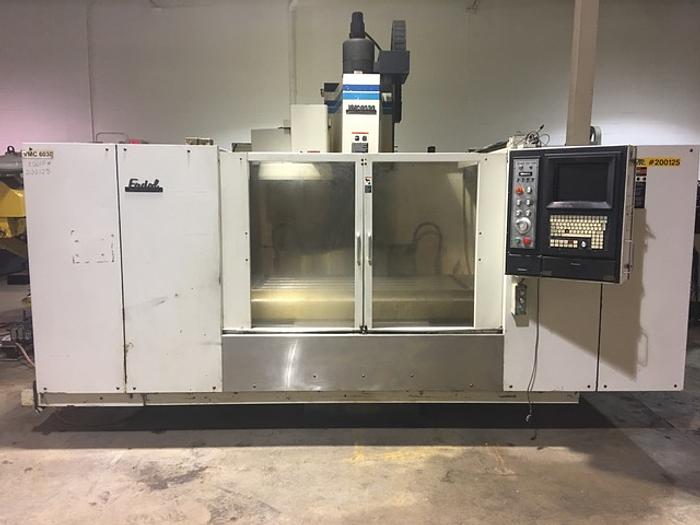

1993 FADAL 6030 VERTICAL MACHINING CENTER

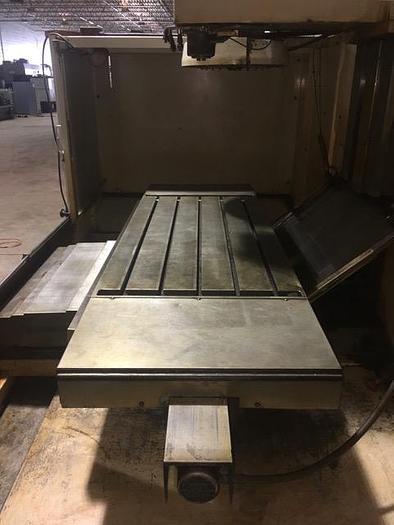

Table Size 62.5" x 30" Floor to Table Surface 36" T-Slots (No. x Width x Span) 5 x .687" x 5.5" Cutting Feed Rate (X/Y/Z) .01-250 ipm / 375 @ 150% Rapid Travel Rate (X/Y/Z) 400(X/Y/Z) ipm Max. Weight on Table 4,120 lbs. Axis Drive Motor (X/Y/Z) 5,000 lbs. thrust Ball Screw Size 44mm dia. (X/Y) 38mm (Z) Longitudinal (X Axis) Travel 60" Latitudinal (Y Axis) Travel 30" Vertical (Z Axis) Travel 30" Spindle Nose to Table 5.5" - 35.5" Spindle Center to Column Ways 30" Main Motor - Spindle Horse Power 22.5 HP / 30 HP (option) Spindle Torque 220 ft-lbs. Accuracy, Axis Positioning ± .0003" Accuracy, Axis Repeatability ± .00015" Spindle Speed 10,000 rpm Spindle Orientation Electromechanical Spindle Taper No. 40 ATC, Number of Tools 21 ATC, Tool Selection Random / Bi-directional Max. Tool Diameter 3" (Without Adjacent Tools) (6") Max. Tool Length 15" Max. Tool Weight 15 lbs. Machine Width x Depth 158" x 103" Machine Max. Height 122" Machine Weight 17,000 lbs.
