FANUC M-16iB/20, WITH R-J3iC CONTROL, CABLES & TEACH PENDANT.

FANUC M16iB/20 6 AXIS CNC ROBOT WITH RJ3IB CONTROLLER

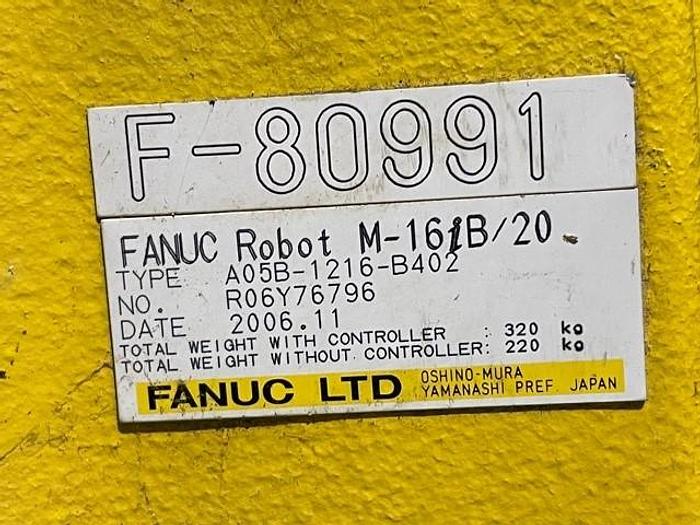

SERIAL NUMBER F80991

DATE OF MFG. 11/2006

STK#104037

================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Robot Specifications

Axes: 6

Payload: 20.00kg

H-Reach: 1667.00mm

Repeatability: ±0.0800mm

Robot Mass: 220.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)

Robot Motion Range

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°

EQUIPPED WITH:

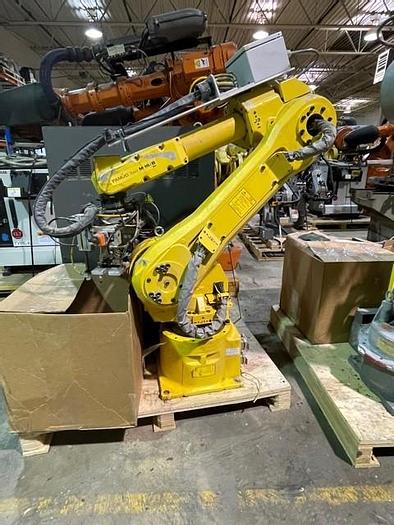

FANUC M16iB/20 ROBOT MECHANICAL UNIT

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT

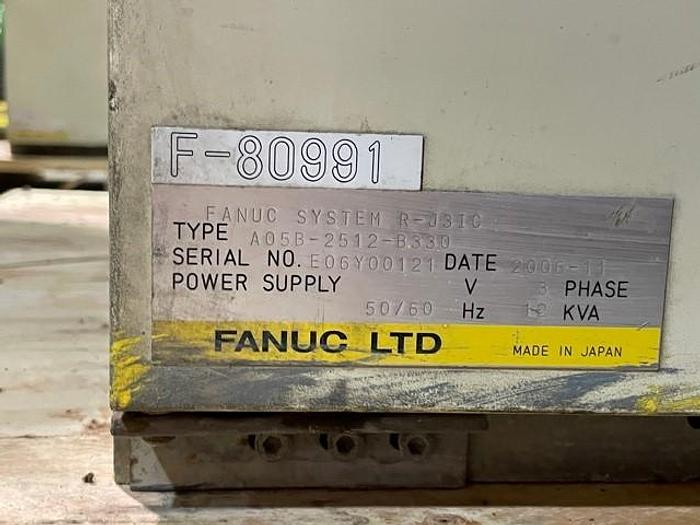

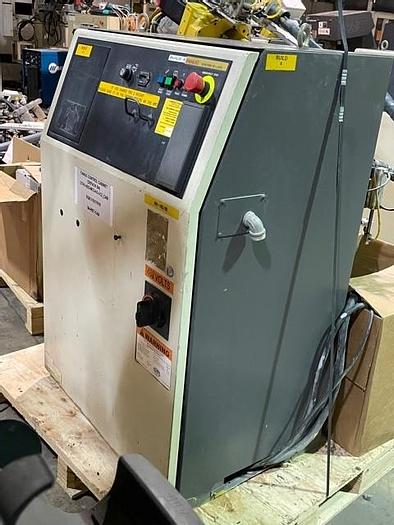

FANUC R-J3iC CONTROLLER (R-30iA)

ROBOT STAND

Robot Applications

Material Handling Robots

Mig Welding Robots

Machine Tending Robots

This Robot is Designed to perform many material handling applications, the FANUC M-16iB/20 features a payload capacity of 20 kilograms. It has servo driven motors, a simple construction, and reliable motion control that further improved productivity and performance.
