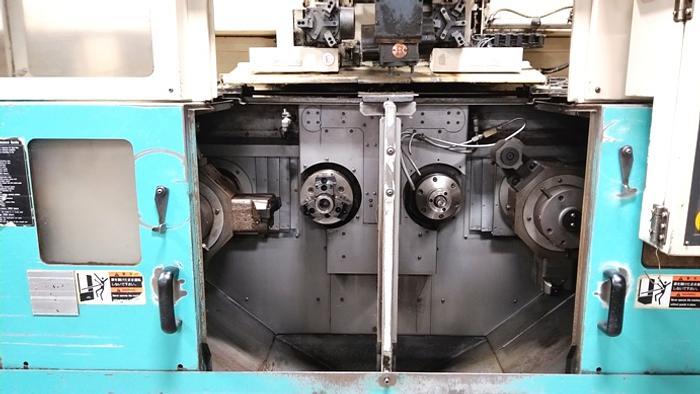

Muratec "Murata" MW120-G CNC Twin Spindle Turning Center
No longer available
Muratec "Murata" MW120-G CNC Twin Spindle Turning Center
Location:Harbor Springs, MI
Description
Distance Between Spindles:: 13.39"
Max. Swing:: 11.61"
Standard Chuck Size:: 6"or 8" Pull Back Chucks
*Optional Installed New Kitagawa 6" UBL Pull Back on Request.
*Optional
CNC Collet Chuck on 2nd Spindle on Request.
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54",
Murata Fanuc 18iT CNC Control and Gantry Loader Software
Murata Single Gantry 180 Degree Swivel Type Loader Arm
Mayfram Rear Discharge Chip Conveyor
Coolant Tanks and Factory Pumps
Air-Coolant Thru Spindle M-Code Installed
Tool Holder Package (10) Turning Tool Holder (3) Boring Bar Tool
Holders.
Specifications
| Manufacturer | CNC TURNING |
| Model | MW120-G |
| Year | 2000 |
| Condition | Used |
| Stock Number | 103755 |
| Turning diameters | 4.72" Nominal, 9.440" Max. |
| Turning lengths | 3.150" Nominal, 3.94" Max. |
| Number of turret stations | 8 |
| X-axis | 5.12" Stroke, 945 IPM Traverse Rate |
| Z-axis | 5.71" Stroke, 945 IPM Traverse Rate |
| Rapid traverse rate (x & z axis) | 78.78 FPM |
| Spindle speeds | 45 - 4500 RPM |
| Spindle noses | A2-5, Bore 1.850" |
| Spindle drive motors | 15 HP |
| Tool shank size | 0.75" Square, 1.570" Round |
| Approx. weight w/loader | 11,800 lbs. |
| Floor space | L 139.37" x w 136.22" |
| Jaw stroke | 1.18" |
| Max. work-piece weight | 8 lbs x 2 Parts 16 Lbs. Max. |
