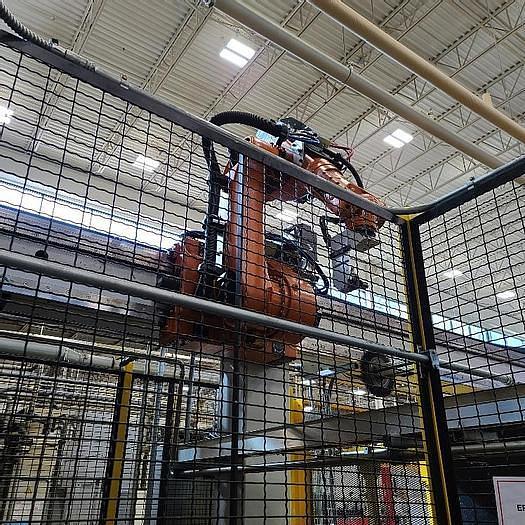

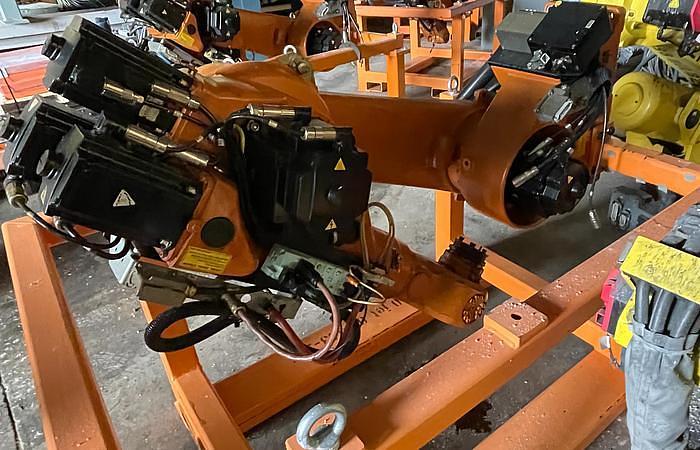

2012 KUKA KR60 JET GANTRY ROBOT SYSTEM WITH KRC4 CONTROLLER

KUKA KR60 JET GANTRY ROBOT SYSTEM WITH KRC4 CONTROLLER

DATE OF MFG. 12/2012

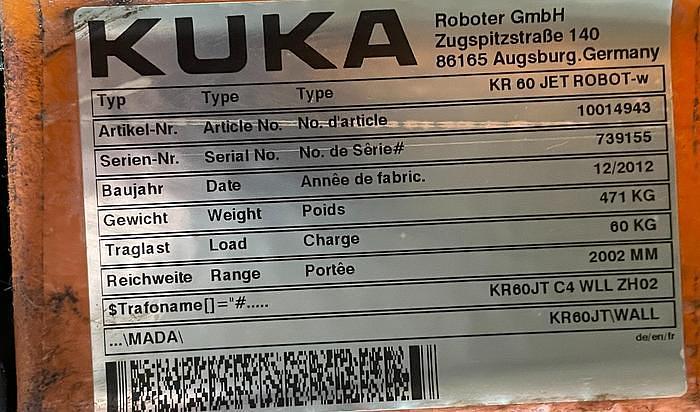

SERIAL NUMBER 739155

STK#104025

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes: 6 Axis 1 is the linear travel on the gantry beam

Payload: 60.00kg

H-Reach: 2002.00mm

Repeatability: ±0.1500mm

Robot Mass: 435.00 kg

Structure: GantryMounting:Inverted

Robot Motion Speed:

J13.2 m/s

J2120 °/s (2.09 rad/s)

J3166 °/s (2.9 rad/s)

J4260 °/s (4.54 rad/s)

J5245 °/s (4.28 rad/s)

Robot Motion Range:

J2+158° - 120°

J3±350°

J4±119°

J5±350°

EQUIPPED WITH:

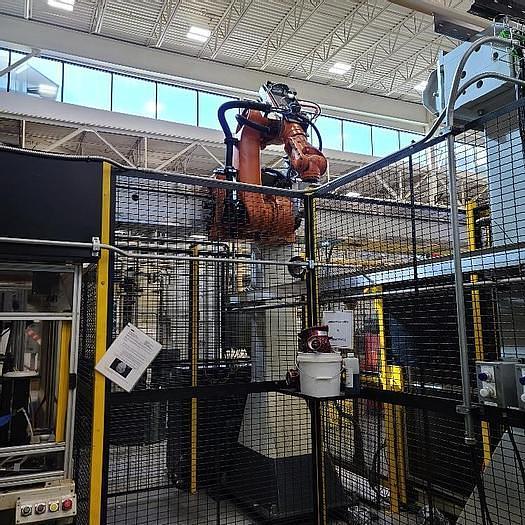

KUKA GANTRY AND SUPPORTING FABRICATED COLUMNS

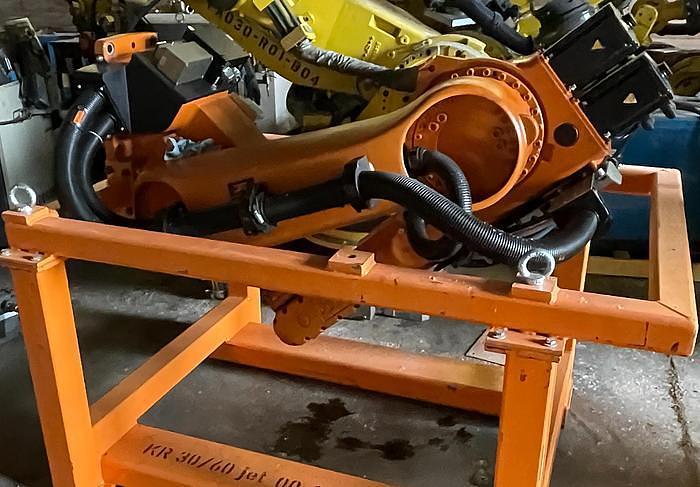

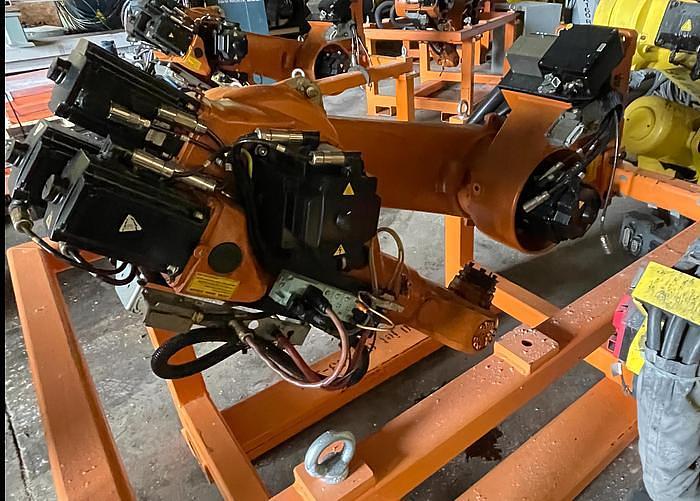

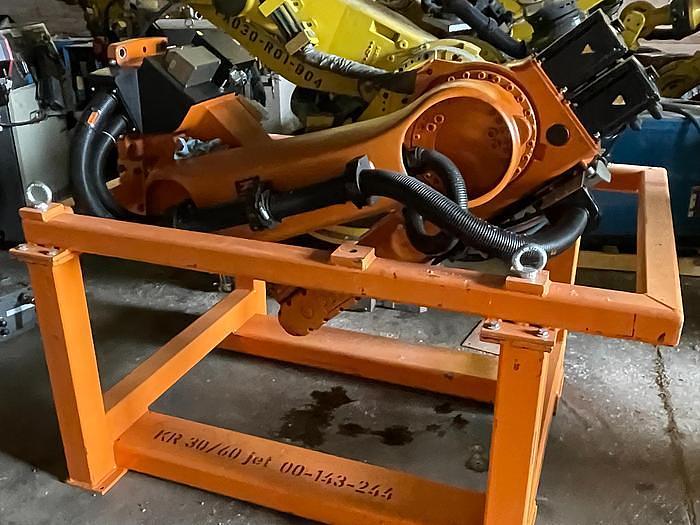

KUKA KR60 JET ROBOT

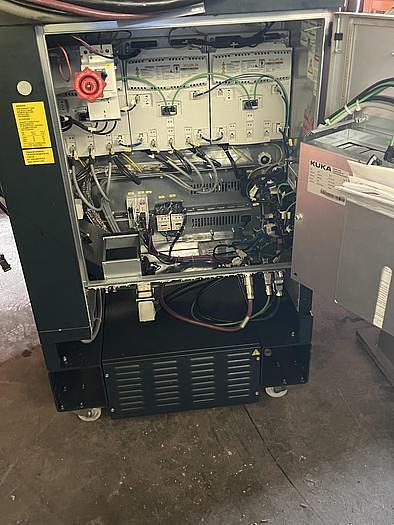

KUKA KRC4 CONTROLLERS

KUKA ROBOT CONNECTION CABLES

KUKA TEACH PENDANT
